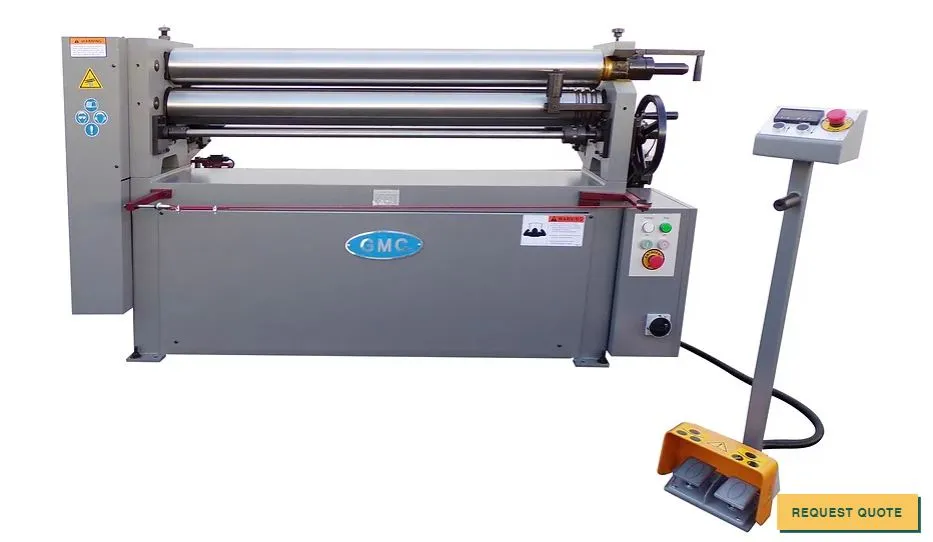

GMC POWER BENDING ROLLS 6 X 10 GA. Mfg. item #: PBR-0610

(SHIPPING TO A BUSINESS ADDRESS WITH A WAY TO UNLOAD)

Standard Features:

• ISO 9001 certified
• Adjustable cone attachment included
• Taiwan Machines
• One wheel operated for pinch roll
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse
• Safety type forward/reverse foot pedal
• Power source 220V, ( option: 440V, 3 phase )
• One year industrial warranty for parts

• Standard Equipment:

  • Adjustable cone attachment
  • Removable safety foot pedal
  • Operation & parts manual

  Optional Equipment:

  • Orange color safety front guard

  SPECIFICATIONS
  Model	PBR-0412	PBR-04316	PBR-0425	PBR-0510	PBR-0612	PBR-0610
  Capacity Mild Steel	4’3” x 12 Ga	4’3” x 3/16 Ga	4’3” X ¼”	5’1” x 10 Ga	6’8” x 12 Ga	6’8” x 10 Ga
  Capacity Stainless Steel	4’3” x 16Ga	4’3” x 11Ga	4’3” x 11Ga	5’1” x 14Ga	6’8” x 16Ga	6’8” x 14Ga
  Roll Dia.	3-1/2”	4-3/4”	6-1/4”	4-3/4”	4-3/4"	5”
  Min. Bending Dia.	4-3/4”	6”	8-1/4”	6”	6”	6-3/4”
  Pre-bend	0.07"	0.16”	0.25”	0.12”	0.12”	0.12”
  Rolls Speed (ft/min)	20	20	20	20	20	20
  Rolls Opening	1/2”	1/2”	1/2”	1/2”	1/2”	1/2”
  Main Motor HP	2HP	3HP	3HP	3HP	3 HP	3 HP
  Weight LBS approx	1,950	2,750	3,850	3,050	3,150	3,850
  Overall Dimensions (inch)	78x30x50	78x30x52	78 x33x52	96x32x52	106x33x52	106x33x52
