MB-102 830 Tie Points Solderless PCB Breadboard AND 65PCS Jumper Cable Lead

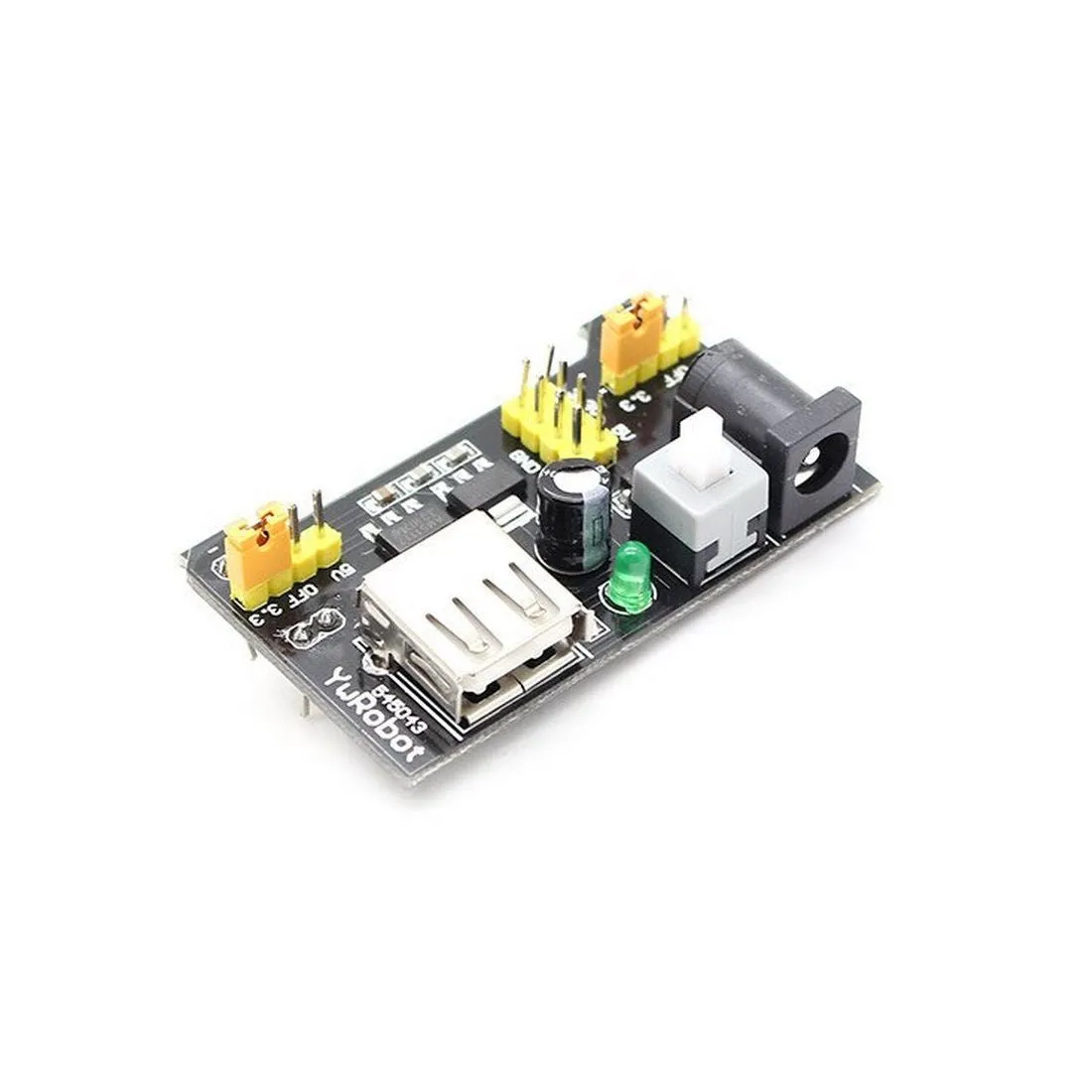

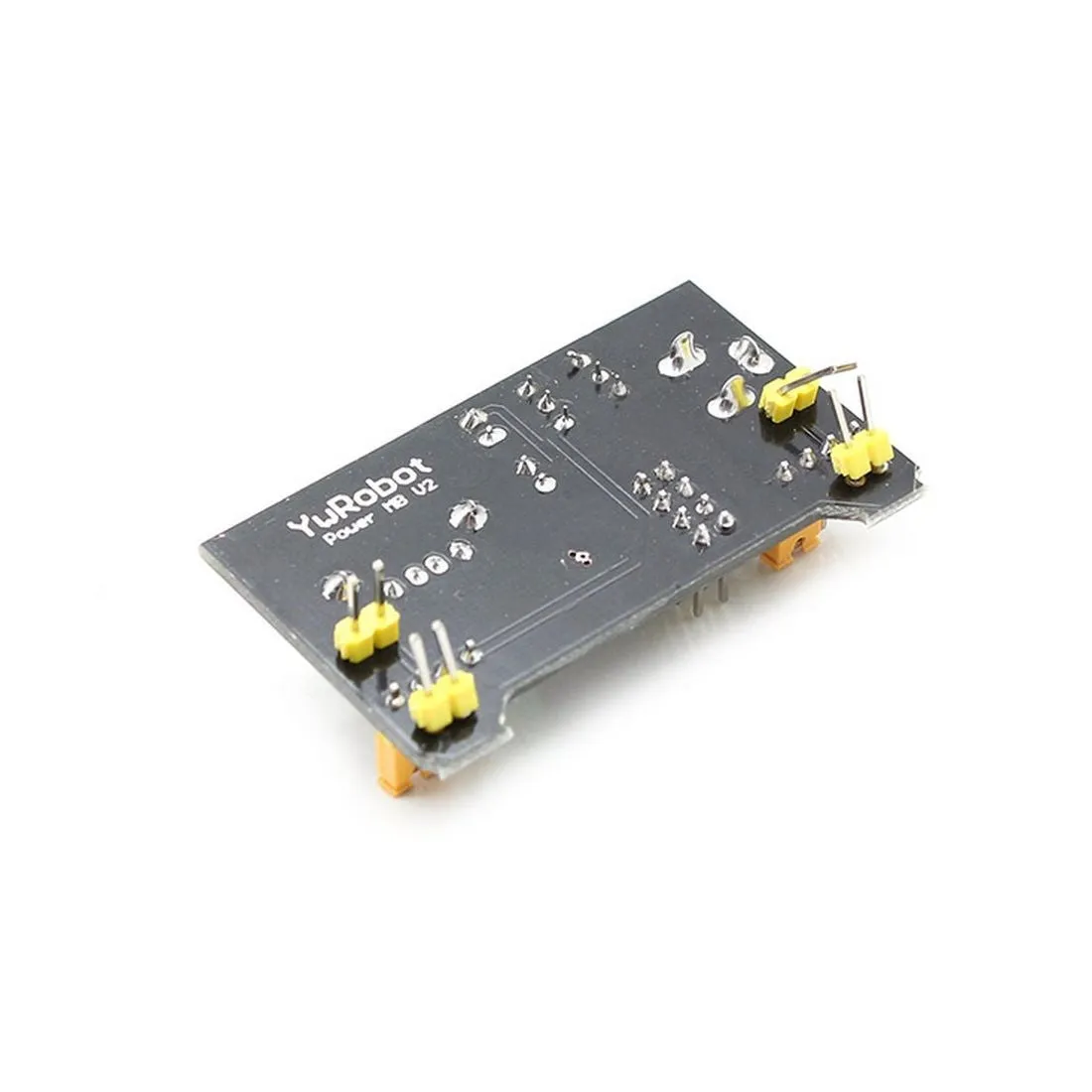

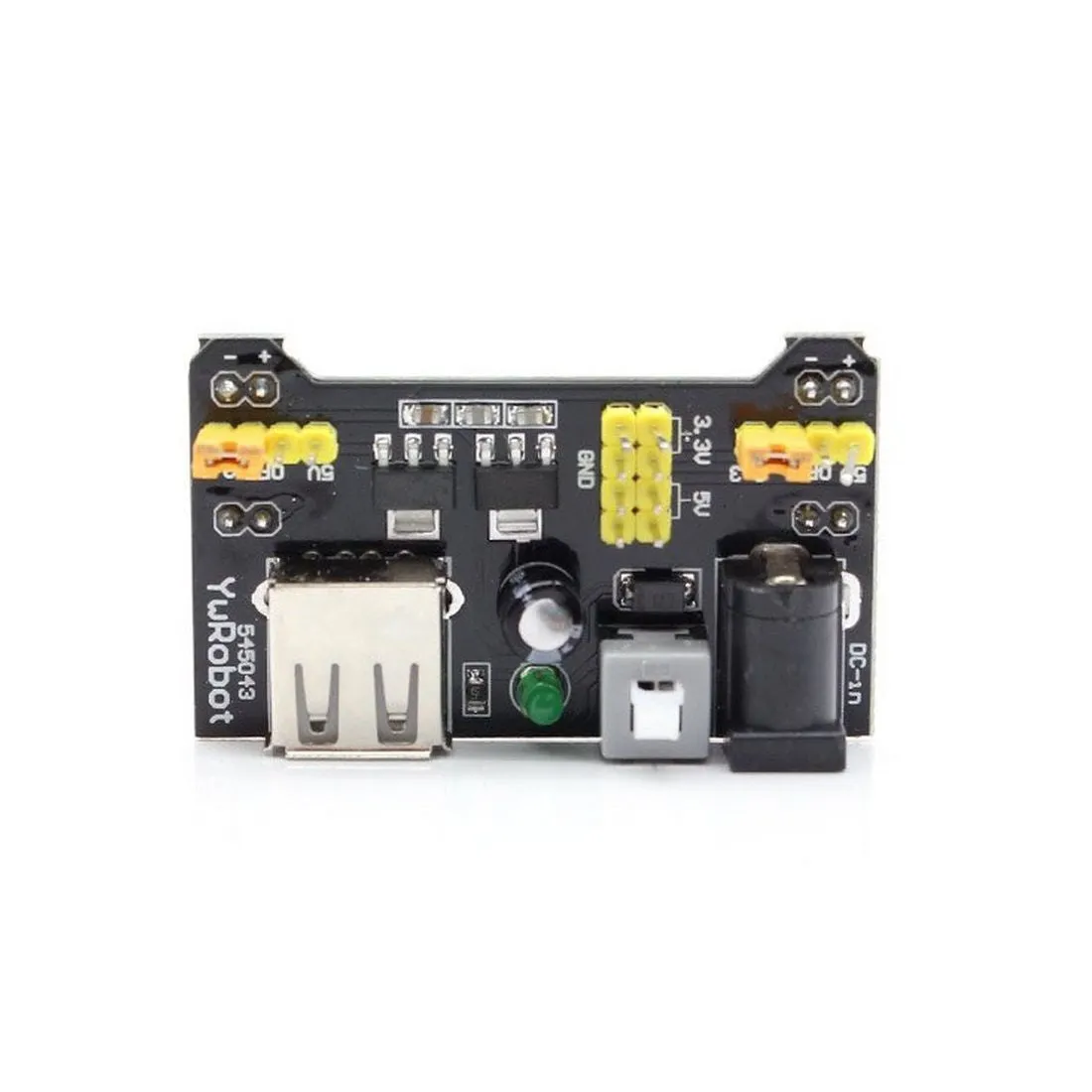

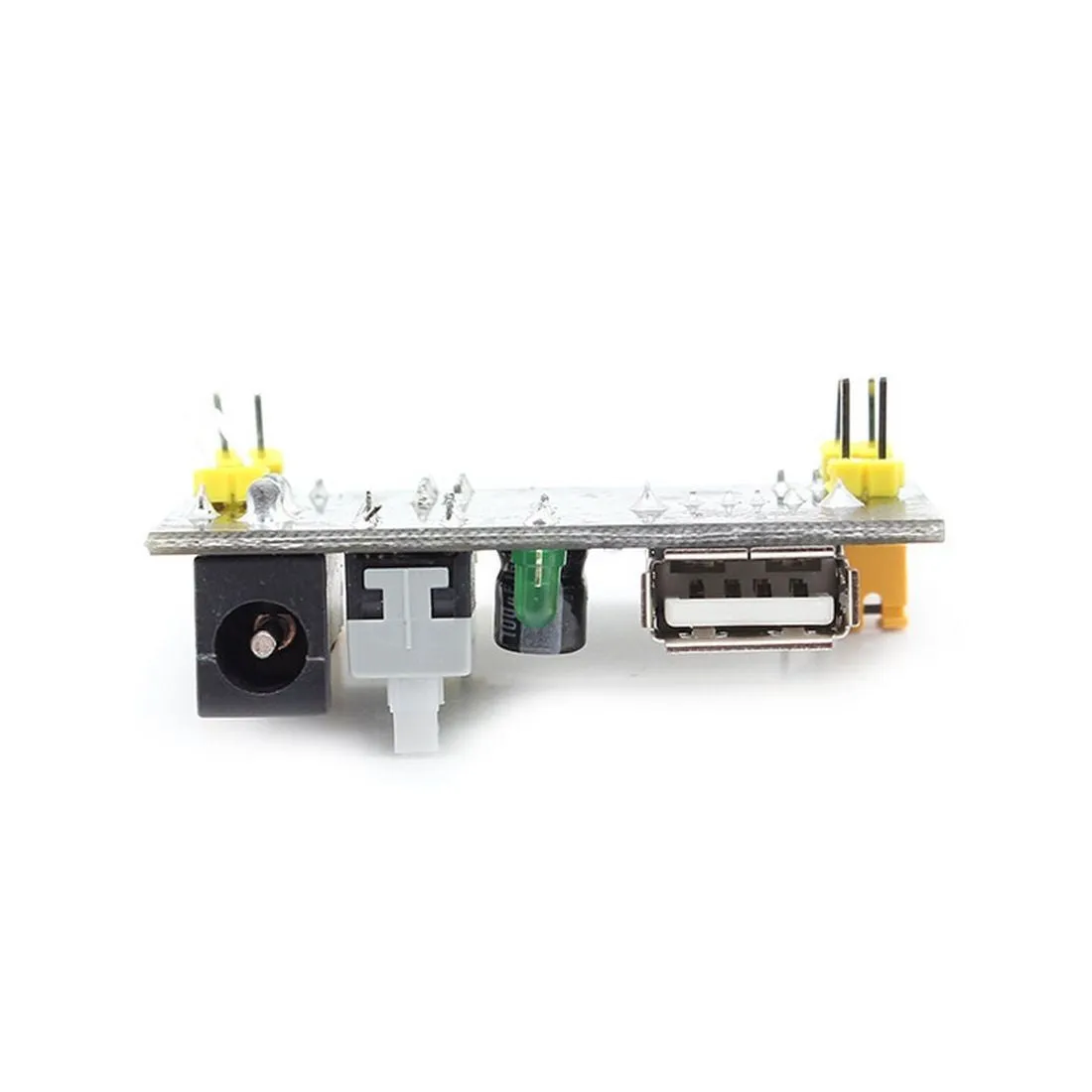

3.3V - 5V Power Supply Module for MB102 Breadboard Arduino Raspberry Pi
Colour: Black
Material: PCB Plastic Copper
Compatible with 5V / 3.3V
Input voltage: 6.5~12V or USB powered
Output voltage: 3.3V, 5V switchable
Maximum output current: <700mA
Two way independent control, can be switched to 0V, 3.3V, 5V
On-board Two sets of 3.3V, 5V output pins, facilitate the external leads
Dimensions (cm): 5.5 x 3.1 x 2.1
Weight (kg): 0.011

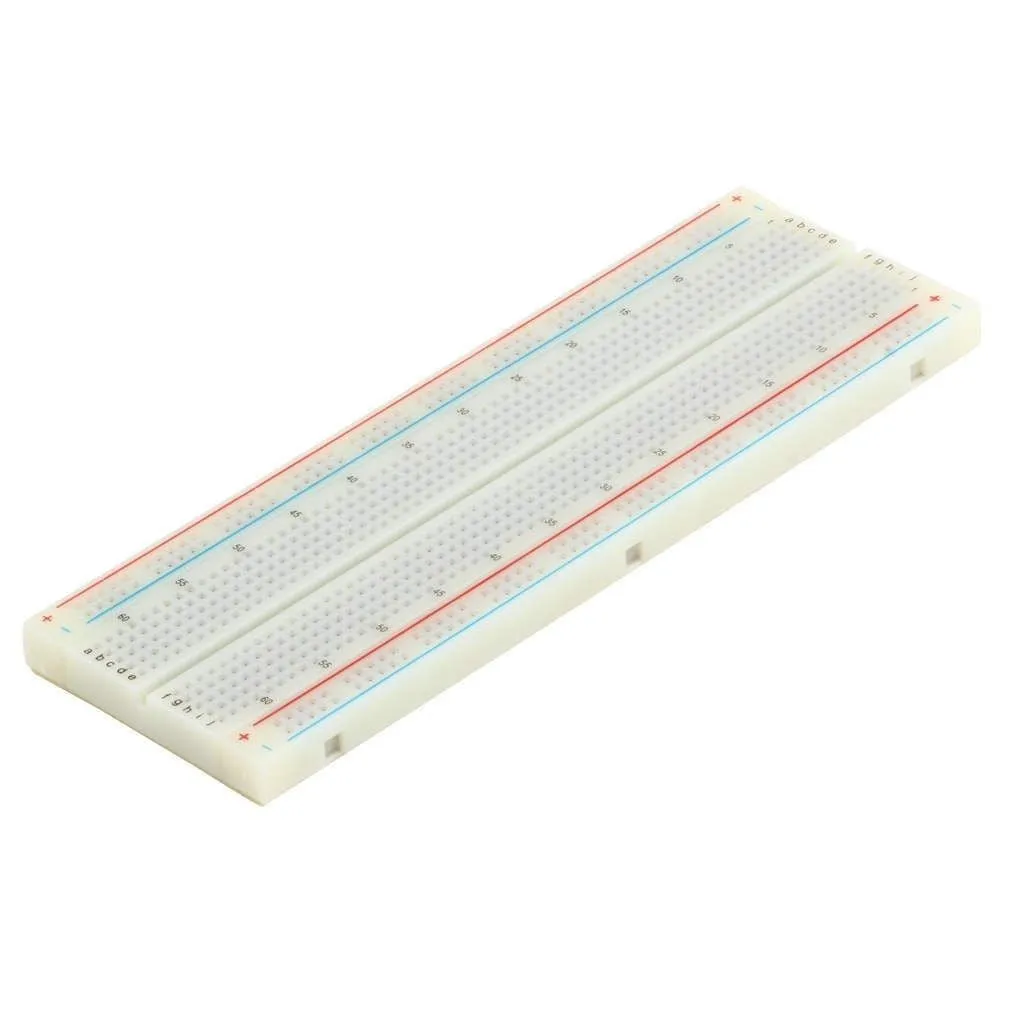

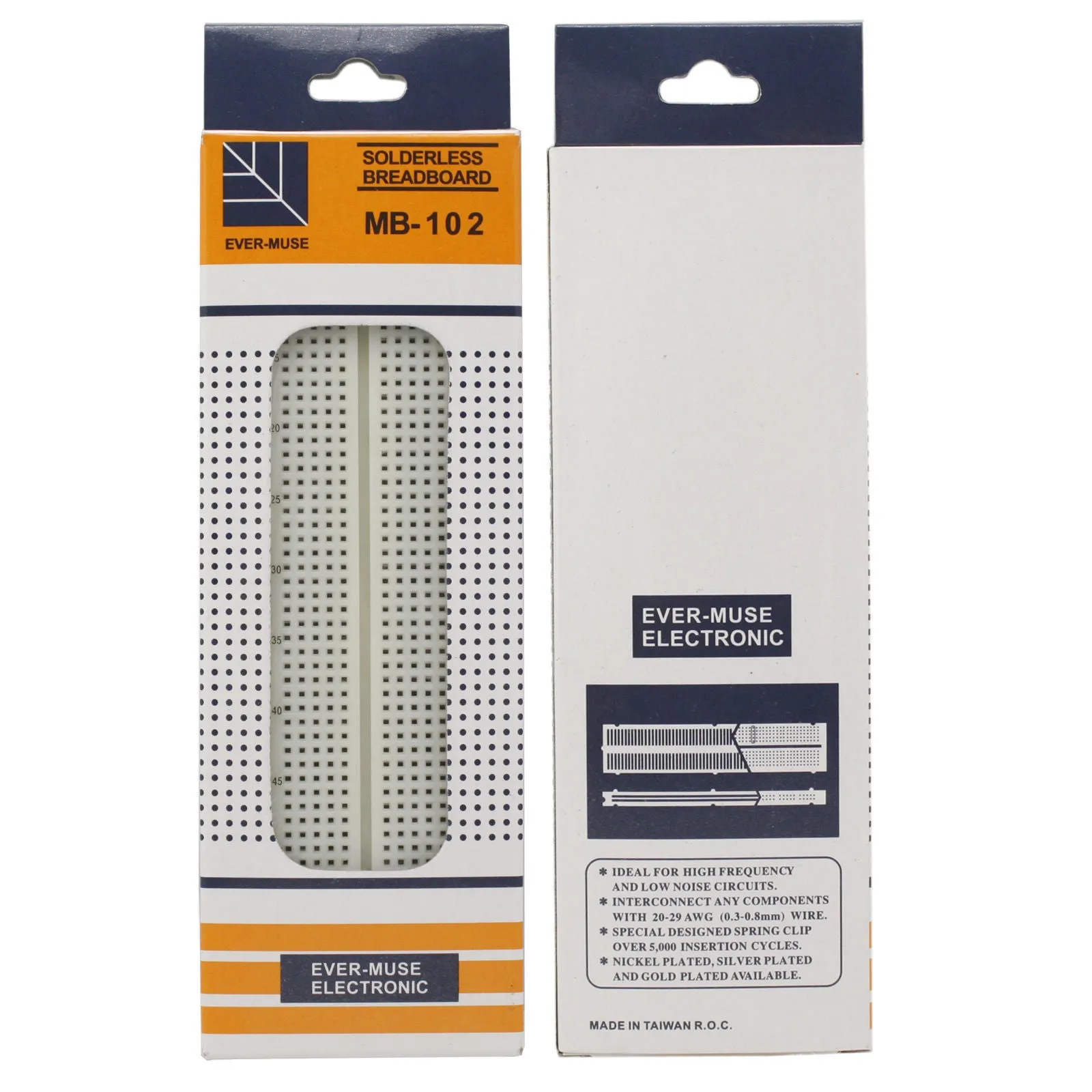

MB-102 Solderless Breadboard 830 Points 2 buses Circuit Bread Board Raspberry Pi

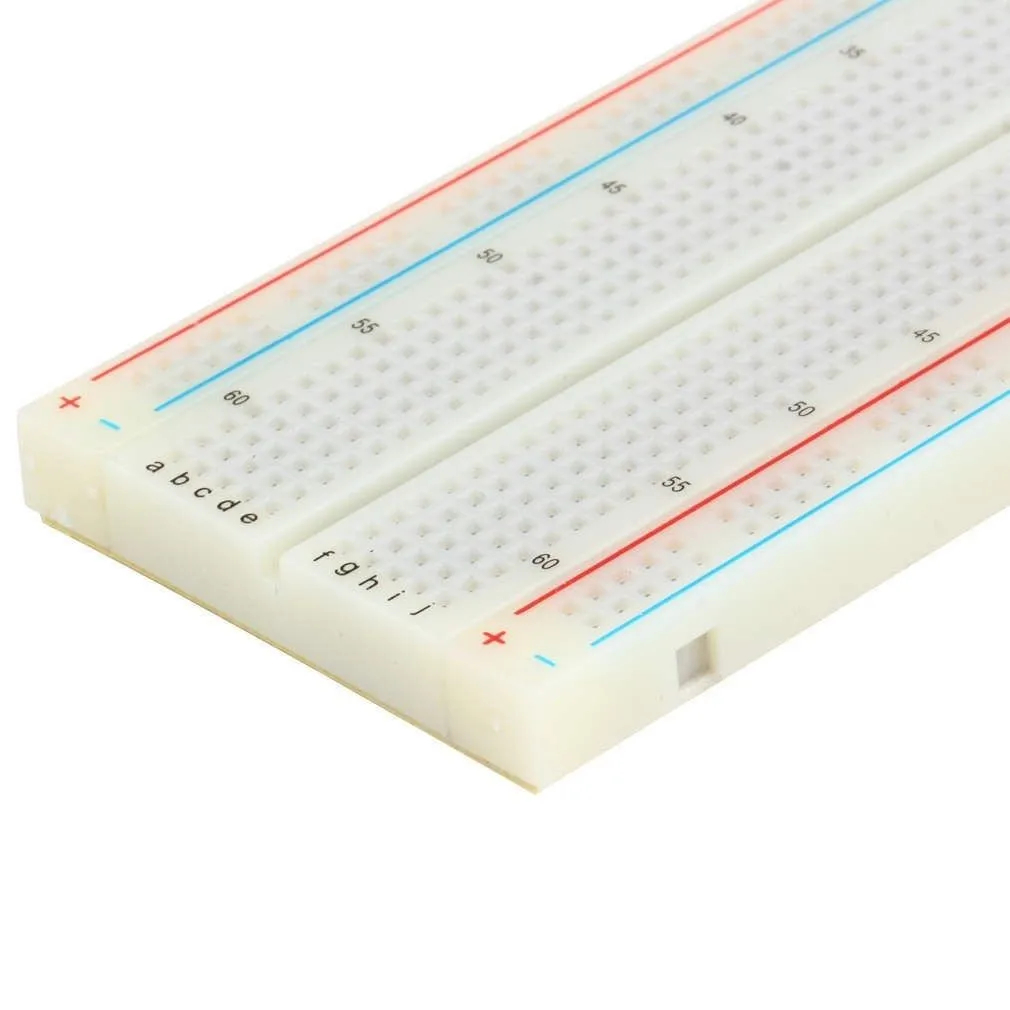

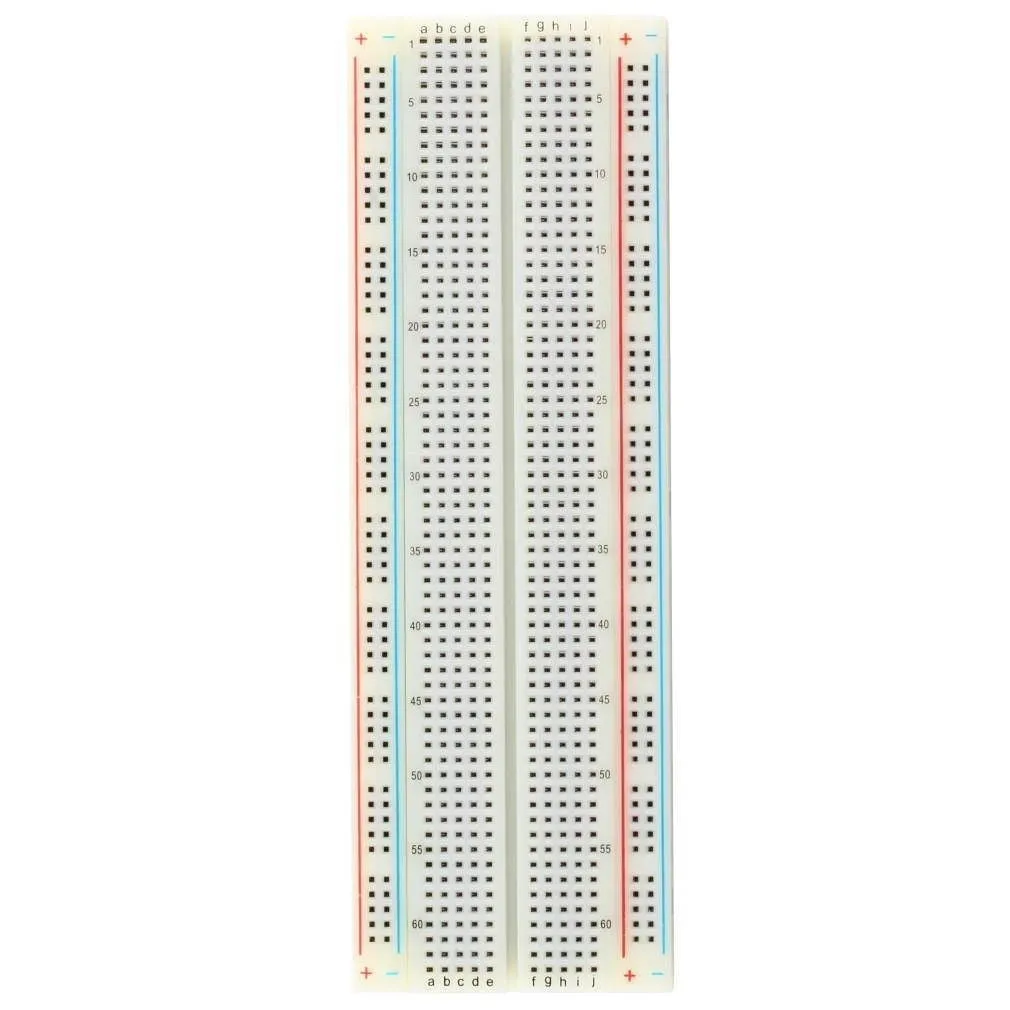

830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
White ABS plastic body with black printed legend. Color legend on distribution strips.
Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.
Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm) Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

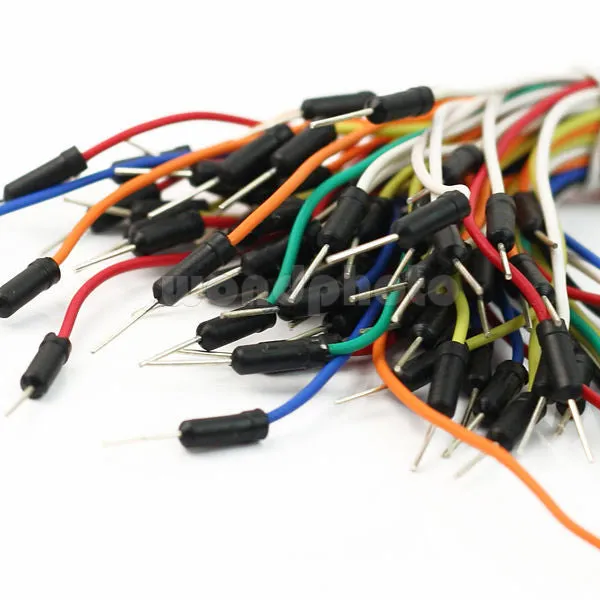

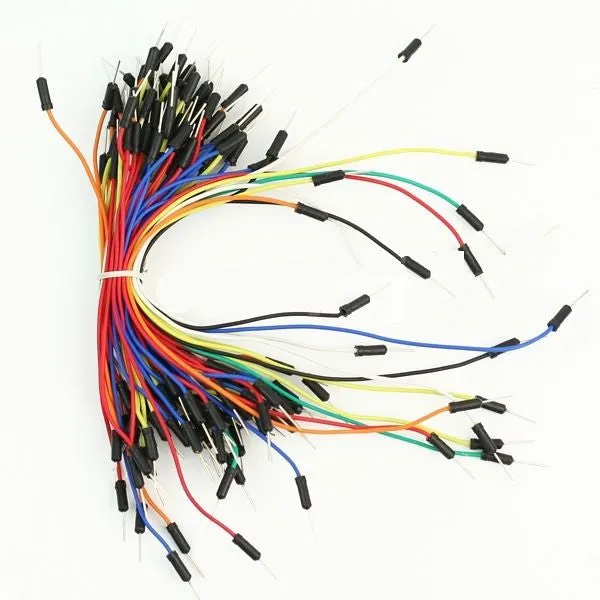

65 pcs jumper cable male - male
The jumper cables with diverse lengths are applied for breadboard, which enable you to fix and connect the circuit board freely.
Professional made, stable performance
Includes 4 different lengths.
64PCS for a set

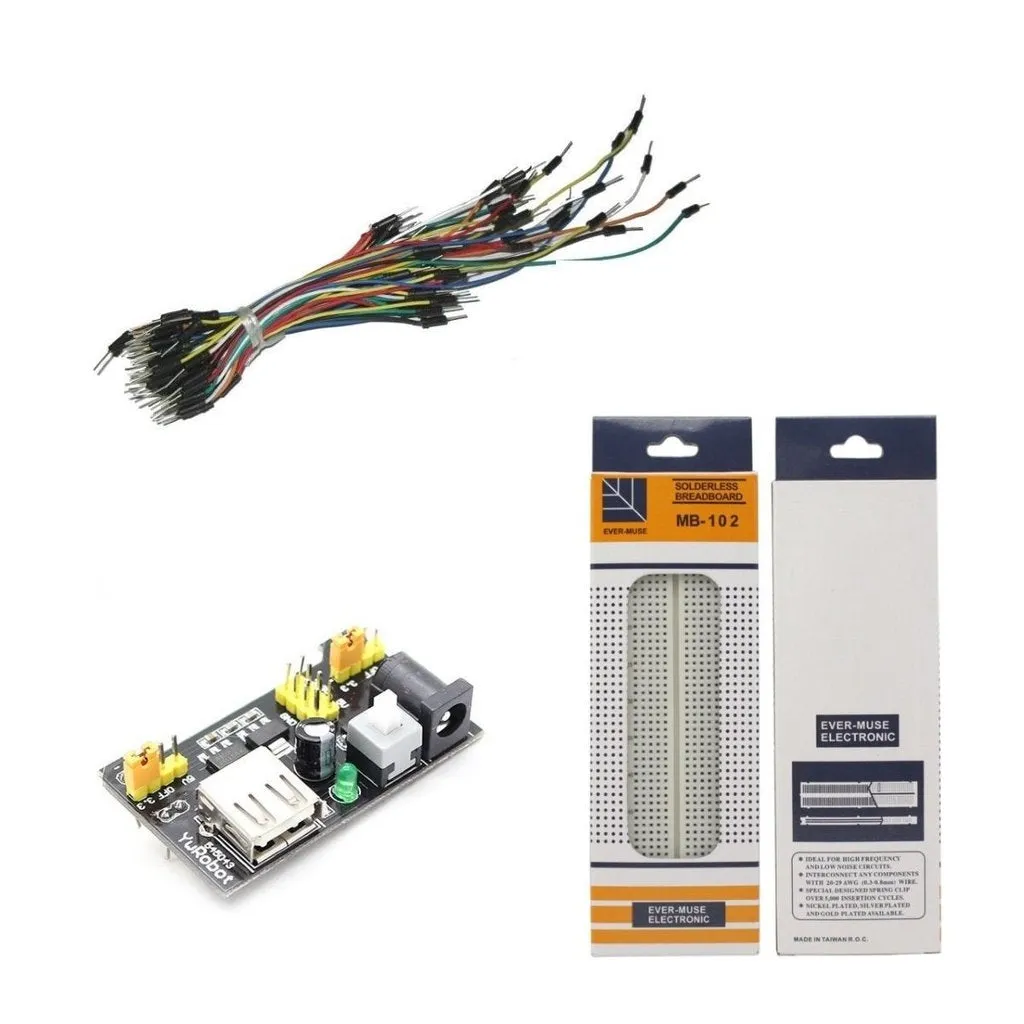

Package Includes:
1 x MB-102 Power Supply Module
1 x 830 point Breadboard
1 x 65pcs jumper cable set



Raspberry Pi is a Trademark of the Raspberry Pi Foundation.



Product ID: EP039
